Electrical Rewiring Singapore

Electrical rewiring Singapore homeowners are quoted for should be sized to the wiring’s condition, not its age. Published HDB packages run from S$2,090 for a 3-room flat to S$3,210 for a 5-room, and a complete quote also covers testing, certification and the submissions.

  • Condition, not age
  • Certification before use
  • Itemised written quote
New cabling being drawn through conduit in a Singapore flat
The short answer

Electrical rewiring Singapore quotes vary most on scope: points, concealed or surface wiring, the board, and whether certification and submissions are included. Published HDB packages run S$2,090-3,210 by flat size. HDB puts the average life of PVC cables at about 25 years, a reason to inspect rather than an expiry date.

What rewiring actually is

Partial or whole-home

  • Partial: one circuit, a kitchen or a wet area where the problem sits.
  • Whole-home: every circuit, usually with a new board, when the condition is poor throughout.

How do I tell if my house needs rewiring?

The signals are about condition. Any one of them is a reason to have the wiring tested, not a verdict.

  • Insulation that is brittle, cracked or discoloured where it is visible.
  • Heat, scorching or a smell at several accessories, not just one.
  • Earth leakage that keeps returning after appliances are ruled out.
  • A board with no residual-current protection and no spare capacity.

An instrument test by an LEW, such as insulation resistance, answers the question properly. A visual check alone cannot, and a test button on the RCCB only shows that the device trips, not that every circuit is sound.

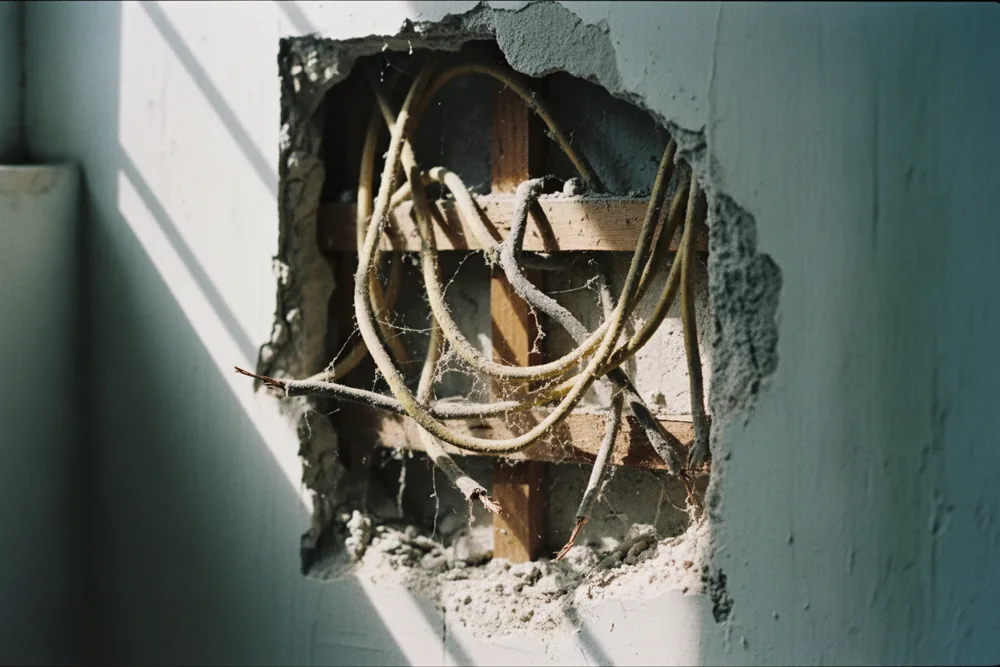

Old cable with brittle, discoloured insulation behind a socket
Condition is the signal: brittle or discoloured insulation, not the year built.

How many years before rewiring a house?

There is no fixed number. HDB puts the average life of PVC cables in a flat at about 25 years and suggests an LEW advise whether wiring needs replacing. That is an inspection prompt, not an expiry date.

A decades-old installation with sound insulation and a modern board may need nothing structural, while a newer one damaged by heat or water may need work sooner. See whether old HDB wiring needs replacing.

Why age still matters for budgeting

Age is a fair reason to plan and set money aside. If the wiring is approaching the average life HDB describes, a test before a renovation tells you whether to include a rewire while the walls are open.

Is it worth rewiring an old house?

It is worth it when the condition is poor or when the home is being renovated anyway, because the walls are open and making good is already planned. It is rarely worth it on age alone.

  • Strong case: failed insulation tests, repeated leakage, heat damage, a full renovation.
  • Weak case: the flat is old but tests well and the board is modern.
  • Middle case: one area is poor; a partial rewire is often the honest answer.

A good electrician will tell you when a rewire is not needed, and will price the smaller option next to the larger one so you can see the difference for yourself.

Rewiring scope, from one circuit to the whole home
What a partial rewire covers versus a whole-flat rewire A partial rewire typically covers one or two circuits plus their accessories, with limited chasing. A whole-flat rewire covers every final circuit, the distribution board, all accessories, extensive concealed work and the making good afterwards. Testing and certification apply to both. Partial rewire Whole-flat rewire One or two circuits Their accessories Limited chasing Test + certify The board itself, and every circuit you did not name, stays exactly as it is. Every final circuit Distribution board All accessories Test + certify Concealed work through walls and ceilings Making good afterwards, and the mess Ask which of these boxes your quote includes. That is where two quotes actually differ.
Scope drives price more than flat size. Decide the scope first, then compare quotes against it.

How much does electrical rewiring cost?

Published Singapore figures give a range, not a quote. SK Electrical lists HDB rewiring packages at S$2,090 for a 3-room, S$2,540 for a 4-room and S$3,210 for a 5-room flat (read 2026-09-18).

Yong Jin Electrical puts 3 to 5-room HDB rewiring at about S$1,200-4,500+ depending on points and trunking versus concealed wiring (published 2025-06-23). The gap between the two sets of figures is mostly scope.

What moves the price

  • The number of points, and whether new ones are added.
  • Concealed wiring with chasing and making good, or surface trunking.
  • Whether the distribution board is replaced, and its size.
  • Whether testing, certification and submissions are included.

How much does it cost to rewire an HDB flat in Singapore?

For HDB flats specifically, the SK Electrical packages above are the clearest published reference, from S$2,090 to S$3,210 by flat size. Ask what each package counts as a point, and whether the CS/5H submission and SP test are included.

Flat-specific scope, sequence and permits are covered in HDB flat rewiring, and the wider flat rules in HDB electrical work.

The steps a rewiring quote must not leave out

Under regulation 7 of the Electricity (Electrical Installations) Regulations, a consumer who modifies an installation must have it inspected, tested and certified fit by an LEW of the appropriate class, at their own expense, and must not use it until then.

  • In HDB flats, new wiring, extensions and rewiring also need SP Services Form CS/5H endorsed by HDB.
  • An SPSL test is applied for through the LEW before the supply is used.
  • A quote that omits these leaves you with wiring you may not lawfully use.

What this does not say: The HDB requirement applies to HDB flats; condominium and landed procedures differ and were not checked here.

Tell us the property and the scope, and we pass it to an electrician who takes it

Request a quote

Three properties, three different scopes

HDB flat

Wiring runs in conduit or trunking and may not be embedded in the structure. The CS/5H submission and an SP test apply to rewiring.

Most flats fall inside the Electrician Licence class. Scope is usually points, the board and making good.

Condominium or landed home

A condominium unit adds the managing agent’s renovation rules and working hours. Common areas are not yours to rewire.

A landed home carries the whole installation, from the incoming supply inward, so the scope and the licence class can be larger.

What a complete rewiring quote should include

  • The named LEW and licence class, which you can check on ELISE.
  • A point schedule: how many, where, and which are new.
  • The cable route: concealed with chasing, or surface trunking.
  • The board, as its own line.
  • Testing, certification, the CS/5H submission and SP test where they apply.
  • Making good, disposal, GST and anything excluded.

Two quotes can only be compared when both answer every line. Ask for a missing line rather than assuming it is included.

Comparing two quotes line by line
Two quotes at the same price, buying different things Two quotations can carry an identical headline figure while differing on every line that matters: whether the call-out is absorbed, whether diagnosis time is included, whether parts are itemised, whether making good after chasing is in scope, and whether testing and labelling are provided at handover. Compare the lines, not the total. Quote A Quote B Call-out absorbed into the job Call-out billed on top Diagnosis time included Diagnosis charged hourly Parts itemised by name and rating Parts as a single lump sum Making good after chasing in scope Making good excluded Tested and labelled at handover No test results mentioned Same headline figure. Different job. The exclusions are where two quotes actually differ.
Line up the inclusions before you compare totals. The cheaper quote is often the one that leaves out certification or making good.

What happens during a rewire

A whole-home rewire follows a predictable order, and knowing it helps you plan around the disruption. Partial jobs follow the same steps on a smaller scale.

  1. Survey and test. The existing circuits are tested and the point positions agreed.
  2. Isolation. Circuits are switched off in stages, with temporary supply where needed.
  3. Chasing or trunking. Cable routes are cut or fixed, and conduit is laid.
  4. First fix. New cable is drawn in and boxes are set for every point.
  5. Second fix. Accessories go on, and the board is connected.
  6. Test, certify and hand over. Nothing is used until it is certified fit.

Living in the home during the work

Expect dust with concealed work, and periods without power to some rooms. Ask which circuits will be live each day, where the temporary supply will be, and who clears up at the end of each day.

The board, the RCCB and an old ELCB

A rewire is the easiest time to change the distribution board, because its capacity and protection can be matched to the new circuits. Ask for the board as its own line so its cost is visible.

An old ELCB is not automatically non-compliant, and a partial rewire does not always mean a new board. Sensitivity, condition, test results and which circuits it covers decide. A higher-rated breaker is never a fix for tripping, before or after a rewire.

Sequence the rewire around the renovation

  1. Test and scope first. Decide partial or whole-home on test results.
  2. Plan the points. Settle positions before any carpentry is designed.
  3. First fix before walls close. Conduit and cable go in before tiling and cabinets.
  4. Test, certify and submit. Then connect and hand over with the board labelled.

Electrical work discovered after the carpentry is installed is the costliest rework in a renovation, and it is almost always a sequencing failure.

From the trade
Pipes you need to look out for because plumbers normally run the pipes in any way that suits them.
Artisan Electrics , UK electrical contractor, on chasing walls during a full rewire
What it means for you: Concealed rewiring means cutting into walls that hide other services. Ask how the electrician locates pipes before chasing, and who pays if one is hit. UK practice, cited for method only.

Surface trunking or concealed wiring?

Surface trunking is quicker, less disruptive and easier to alter later, but it is visible. Concealed wiring looks cleaner and costs more, because of chasing, conduit and making good.

In a flat being fully renovated, concealed usually makes sense. In a lived-in home with a small scope, trunking along skirting or ceiling lines is often the practical choice.

The HDB rule on embedded wiring

In an HDB flat either way, the wiring may not be embedded directly in the slab, beam, column or wall. It runs in conduit or trunking, which is also what makes a future change possible without breaking into the structure.

When rewiring is not the answer

Many problems blamed on old wiring are appliances. A water heater leaking to earth, a damp outdoor light or one scorched socket is a repair, not a rewire. Trace the fault first with electrical fault finding.

For larger premises, the licence class and approvals change; see commercial electrical contractors. Background reading on wiring and boards is in the electrical guides.

Signs that point to a repair instead

  • The trip stops when one appliance is unplugged.
  • Only one socket or one fitting shows heat or scorching.
  • Insulation tests pass on every circuit but one.

Rewiring, resale and insurance

Paperwork from a rewire outlasts the work. Buyers, their agents and insurers ask who did the wiring and whether it was certified, and the answer is much easier with documents than with memory.

  • Keep the certificate and test results for the new circuits.
  • Keep the invoice naming the LEW and listing the scope.
  • Keep a copy of the CS/5H endorsement for an HDB flat.
  • Keep the board schedule, so each breaker can be traced later.

None of this proves the work is perfect. It shows that the steps the rules require were done, by a named person you can check.

Renting or letting: who arranges the rewire

Rewiring is a landlord’s decision in almost every tenancy, because it changes the fixed installation. Tenants who suspect the wiring should report the symptoms in writing rather than arrange work.

Landlords letting an older property can use a test report to decide between a partial rewire and waiting, rather than guessing from the age of the building.

Questions to ask before you sign

  • Who is the named LEW, and will that person do or supervise the work on site?
  • How many points are included, and what counts as a point?
  • Who submits Form CS/5H and applies for the SP test, and are they in the price?
  • What is excluded: making good, painting, carpentry adjustments, disposal?
  • How long will each room be without power, and in what order?

Written answers to these five turn two different packages into quotes you can actually compare.

Electrical rewiring Singapore FAQs

Does old wiring have to be replaced at a certain age?

No. Wiring has no fixed expiry. HDB puts the average life of PVC cables in a flat at about 25 years, as a prompt for inspection. Condition and test results decide.

Can I rewire only part of my home?

Often, yes. A single circuit, a kitchen or a wet area can be rewired on its own when that is where the problem is. Ask for the partial and whole-home options priced side by side.

Can I use the rewired circuits straight away?

Not until they are inspected, tested and certified fit by an LEW of the right class. In HDB flats, new wiring and rewiring also need Form CS/5H endorsed by HDB and an SP test.

Does rewiring need an HDB permit?

Rewiring in an HDB flat must be done by an EMA licensed electrical worker and follows HDB’s electrical-works guidelines, including the CS/5H submission. Check the current guidelines before you schedule.

How disruptive is rewiring?

It depends on concealed or surface wiring. Concealed work means chasing walls and making good; surface trunking is quicker and less messy but visible. Plan it before tiling and carpentry.

Can wiring be embedded in an HDB wall?

Not directly in the structure. HDB does not allow wiring embedded in the slab, beam, column or wall; it must run in conduit or trunking.

Will rewiring stop my RCCB tripping?

Only if the wiring is the cause. Many trips come from appliances. Get the leakage traced first, so you do not rewire a home to fix a water heater.

Should I replace the distribution board at the same time?

Often, because a rewire is when the board’s capacity and protection are easiest to change. Ask for the board priced as a separate line so you can see its cost.

What should a rewiring quote list?

Points, cable route, the board, testing and certification, any CS/5H submission and SP test, making good, GST and exclusions, plus the named LEW.

Is a cheaper package the same job?

Not necessarily. Packages differ in points included, trunking versus concealed wiring, and whether certification and submissions are in the price. Compare the scope line by line.

Get an itemised rewiring quote

Tell us the property type, its age, the scope you have in mind and your area, and we pass it to an electrician who takes it. That electrician must hold a current EMA licence, so check their name on ELISE.

Loading… if the form does not appear, contact us there instead.
If you see smoke or fire, call SCDF at 995 before anything else.

Citations

Sources for every figure on this page

Every figure quoted above is a published third-party number, not an estimate of ours. Where sources disagree, both are shown. Collected and last reconciled 18 September 2026.

  1. Licensed-worker requirement, no embedded wiring, the 25-year average life of PVC cables, and the CS/5H requirement.
  2. E11: regulation 7, inspection, testing and certification before modified wiring is used.
  3. That installation work needs a Licensed Electrical Worker.
  4. That the licence register is public and free to search.
    ELISE: EMA’s public licence register , checked 21 August 2026
  5. The chasing quote; UK practice, cited for method only.
  6. Published HDB rewiring packages: 3-room S$2,090, 4-room S$2,540, 5-room S$3,210.
    SK Electrical: HDB rewiring price , read 18 September 2026
  7. HDB 3 to 5-room rewiring about S$1,200-4,500+ depending on points and trunking.

Published prices move. If a figure here no longer matches the source, the source wins; tell us and it gets corrected rather than quietly left to rot.
